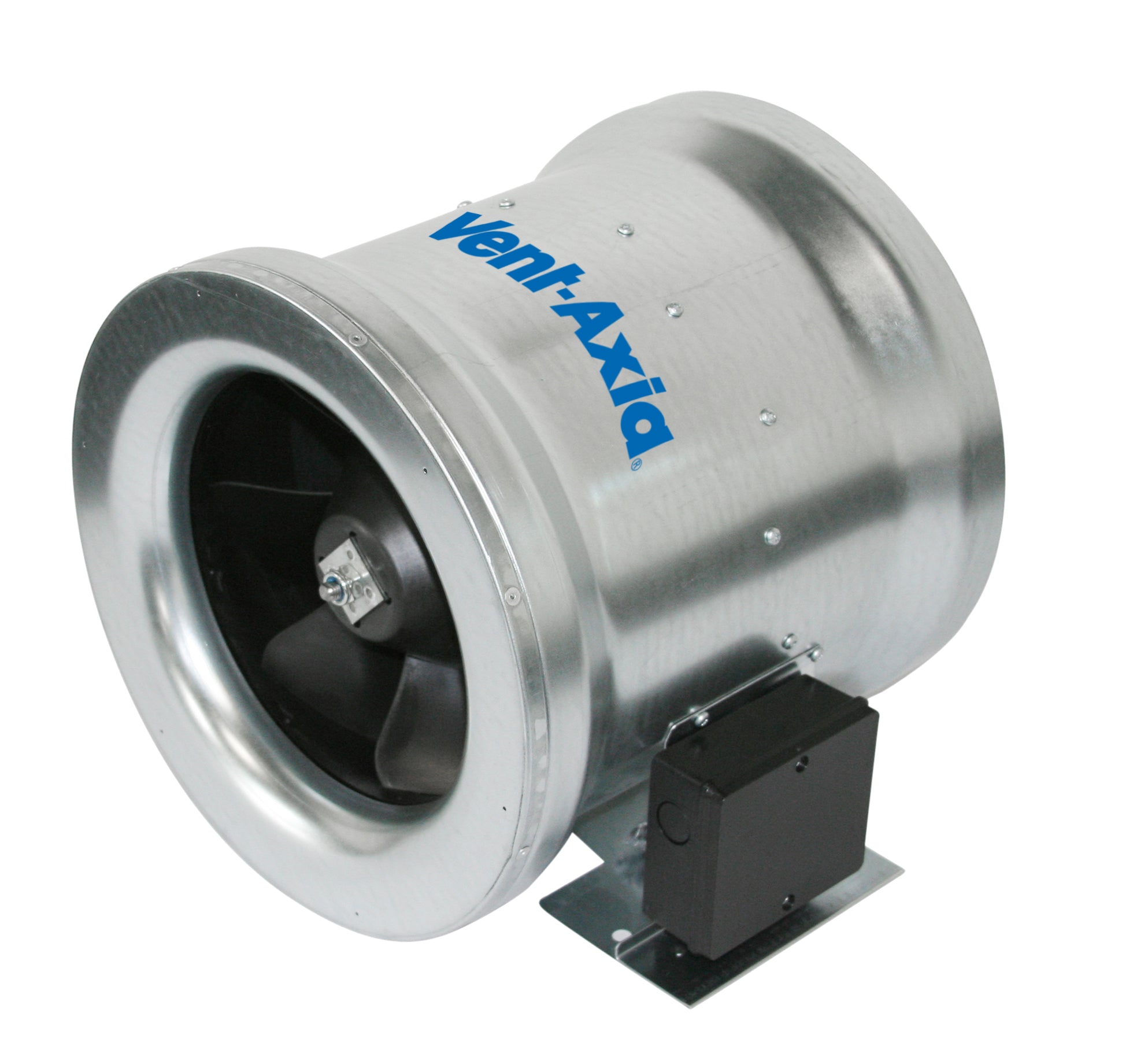

Vent Axia ACM315 315mm In-Line Mixed Flow Fan

Name: Vent Axia ACM315 315mm In-Line Mixed Flow Fan
Brand: Vent Axia
SKU: 237840
Price: 569.66 GBP
Availability: InStock

£569.66 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Trade accounts with 30-day credit available — your prices, fast reordering.

30-day returns · UK delivery available at checkout.

Secure checkout

Specifications

Brand	Vent Axia
Manufacturer part no.	17112010
airflow cubic metresper hour	2351 m³/h
airflow litresper second	653 l/s
decibel rating	56 dB[A] @ 3 m
dimensions	(L)307.6 mm x (H)318.5 mm x (W)335.5 mm
ducting size	315mm
fan speed	2840r/min
guarantee	2 Years
height	318.5mm
insulation class	Class I
ip rating	IP44
length	307.6mm
material	Metal Housing
maximum operating temperature	50°C
motor type	Capacitor Run Motor
operation type	Remote Switching
packaging types	Each
power rating	270W
previously known as	17112010B
product range	Commercial Ventilation
safety cut out	Standard Thermal Overload Protection (S.T.O.P.)
standards	BS EN ISO 9001
supplied with	Mounting Bracket
temperature range	-5 - 50°C
unspsc v18	40101502
unspsc v24	40101502
voltage rating	230V
weight	1.75000kg
width	335.5mm
