Vent Axia

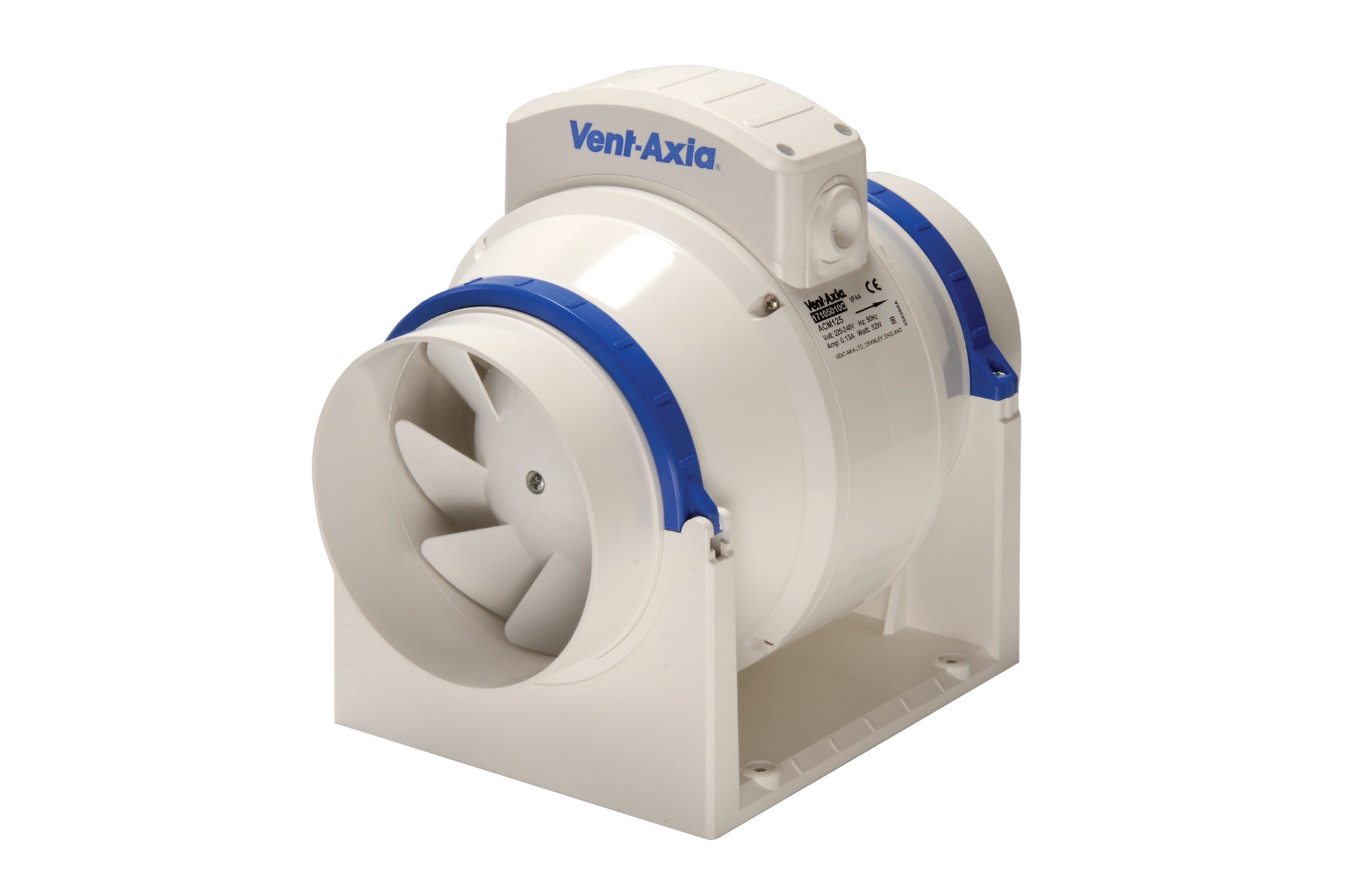

Vent Axia ACM200 200mm 8" In-Line Mixed Flow Fan

Name: Vent Axia ACM200 200mm 8" In-Line Mixed Flow Fan
Brand: Vent Axia
SKU: 57988
Price: 337.94 GBP
Availability: InStock

£337.94 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Trade accounts with 30-day credit available — your prices, fast reordering.

30-day returns · UK delivery available at checkout.

Secure checkout

Specifications

Brand	Vent Axia
Manufacturer part no.	17108010
airflow cubic metresper hour	400 / 864 m³/h
airflow litresper second	111 / 240 l/s
colour	White/Blue
decibel rating	26 / 41 dB[A] @ 3 m
dimensions	(L)300 mm x (H)276 mm x (W)223 mm
ducting size	200mm
guarantee	2 Years
height	276mm
high fan speed	2250r/min
insulation class	Class II
ip rating	IP44
length	300mm
low fan speed	1411r/min
maximum operating temperature	50°C
number of phases	1
number of speeds	3
operation type	Standard
packaging types	Each
power rating	110W 126W
previously known as	17108010B
product range	Commercial Ventilation
safety cut out	Standard Thermal Overload Protection (S.T.O.P.)
size	125 mm
standards	BS EN ISO 9001
temperature range	-5 - 50°C
unspsc v18	40101502
unspsc v24	40101502
voltage rating	230V
weight	1.75000kg
width	223mm
