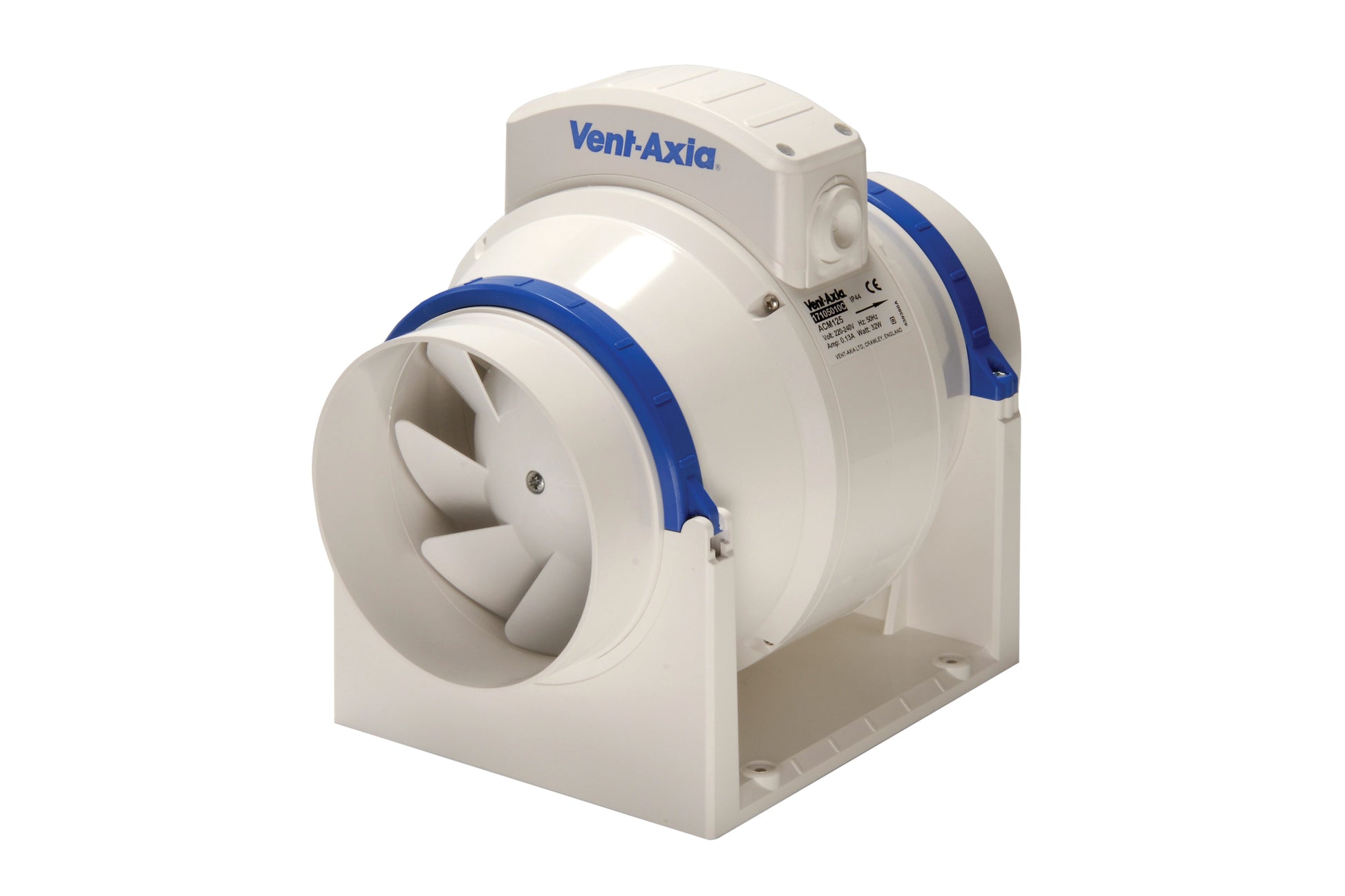

Vent Axia ACM100 100mm 4" In-Line Mixed Flow Fan

Name: Vent Axia ACM100 100mm 4" In-Line Mixed Flow Fan
Brand: Vent Axia
SKU: 57755
Price: 150.46 GBP
Availability: InStock

£150.46 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Trade accounts with 30-day credit available — your prices, fast reordering.

30-day returns · UK delivery available at checkout.

Secure checkout

Specifications

Brand	Vent Axia
Manufacturer part no.	17104010
airflow cubic metresper hour	187 / 255 m³/h
airflow litresper second	52 / 71 l/s
colour	White/Blue
decibel rating	16 / 22 dB[A] @ 3 m
dimensions	(L)298 mm x (H)220 mm x (W)178 mm
ducting size	100mm
guarantee	2 Years
height	220mm
high fan speed	2200r/min
insulation class	Class II
ip rating	IP44
length	298mm
low fan speed	1670r/min
maximum operating temperature	50°C
number of phases	1
number of speeds	3
operation type	Standard
packaging types	Each
power rating	20W 23W
previously known as	17104010C
product range	Commercial Ventilation
safety cut out	Standard Thermal Overload Protection (S.T.O.P.)
size	100 mm
standards	BS EN ISO 9001
temperature range	-5 - 50°C
unspsc v18	40101502
unspsc v24	40101502
voltage rating	230V
weight	1.75000kg
width	178mm
