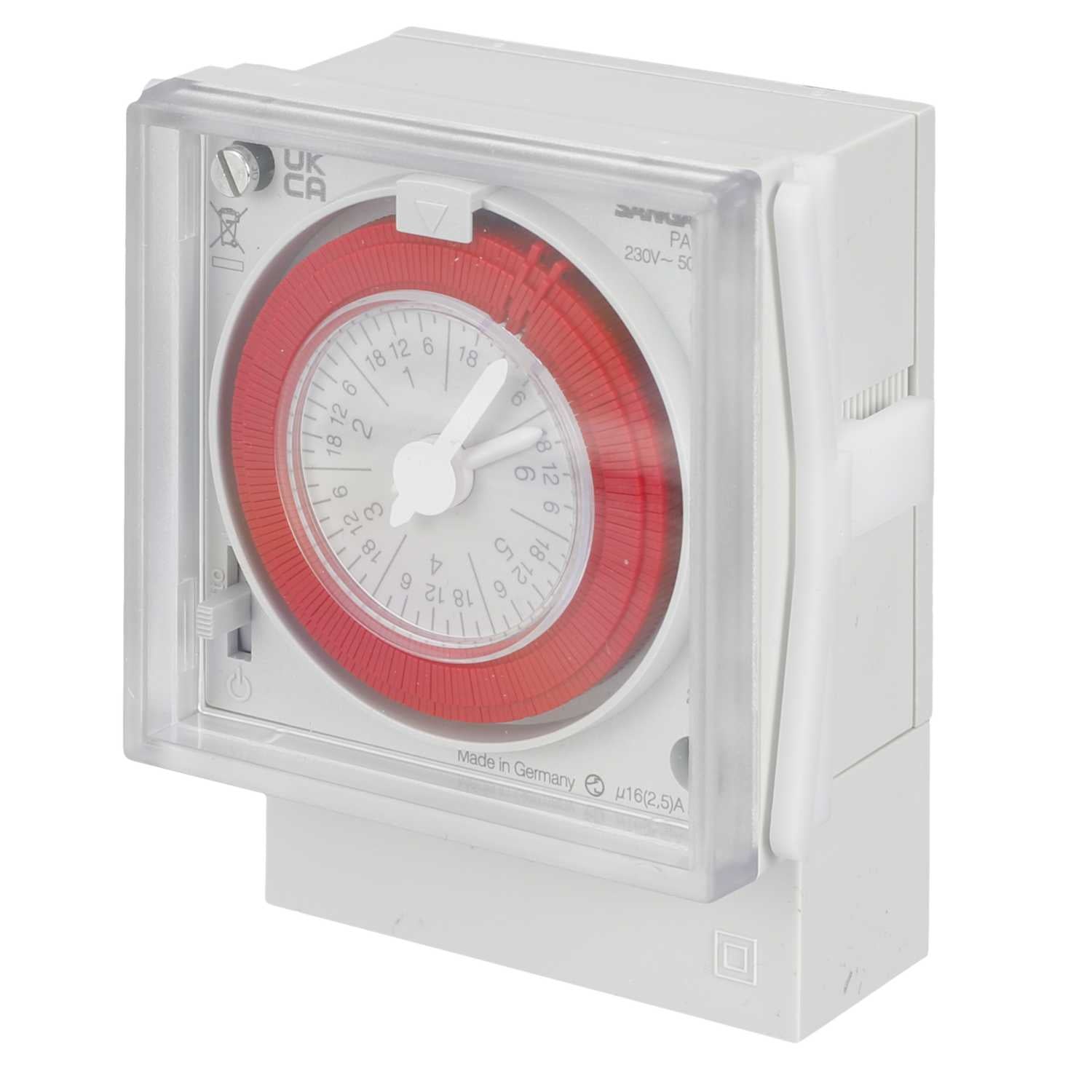

Specifications
| Brand | Sangamo |
| Manufacturer part no. | PA16922 |
| battery back up | No |
| colour | White |
| current rating | 16A |
| current rating inductive | 3A |
| day omit | Yes |
| depth | 53mm |
| dimensions | (H)94.5 mm x (W)72 mm x (D)53 mm |
| display type | Mechanical Dial |
| guarantee | 5 Years |
| height | 94.5mm |
| maximum operating temperature | 0°C |
| minimum operating temperature | 50°C |
| minimum time settings | 10min |
| mounting | Surface, Panel or DIN Rail |
| override switch | Yes |
| packaging types | Each |
| programming type | Captive Segments |
| standards | EN 60715 |
| unspsc v18 | 39121523 |
| unspsc v24 | 39121523 |
| voltage rating | 230V |
| weight | 0.25kg |
| width | 72mm |
