Proteus XL

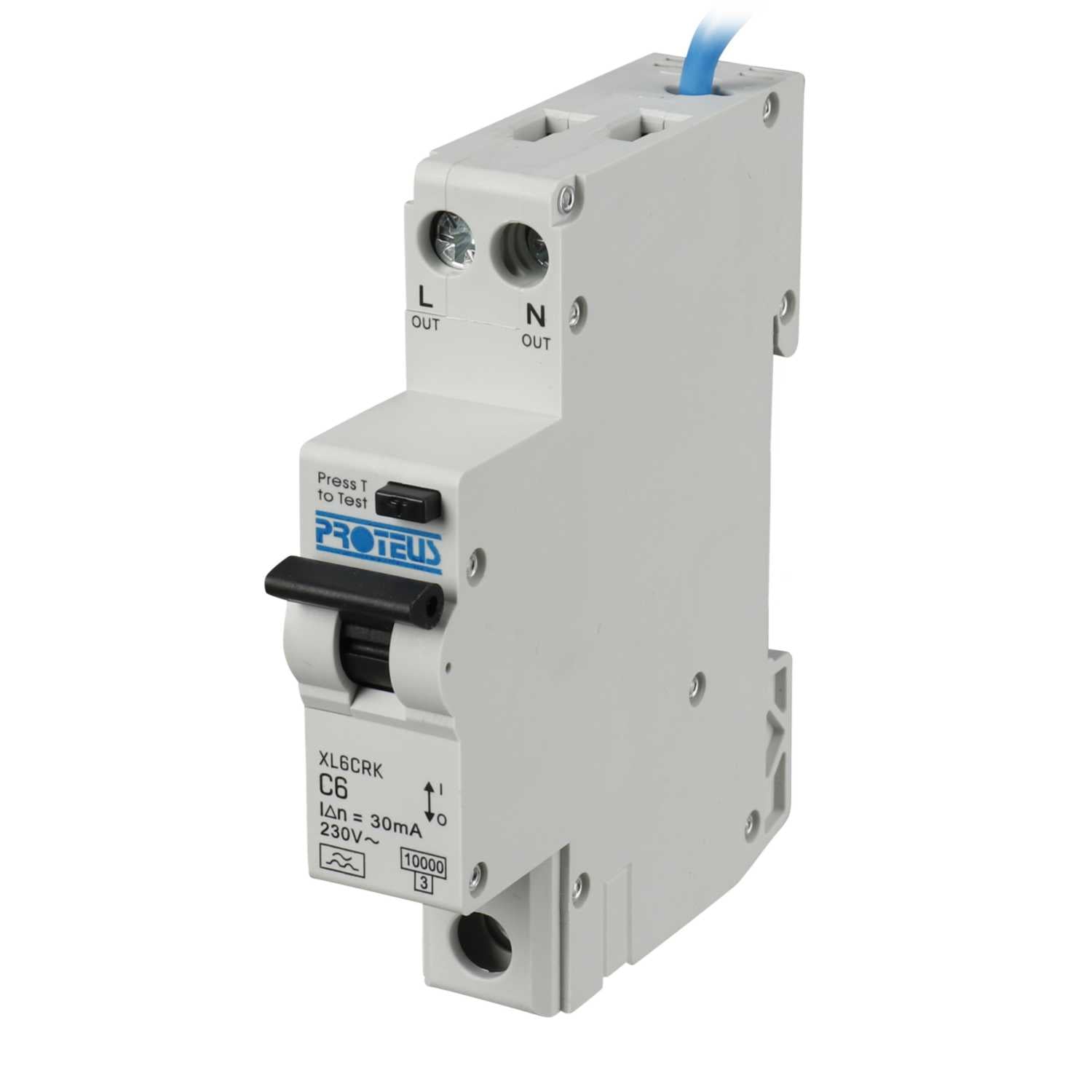

Proteus XL 6A 1P+N 1 Mod Bidirectional C Curve 10kA 30mA Type A Compact Rcbo

Proteus XL 6A 1P+N 1 Mod Bidirectional C Curve 10kA 30mA Type A Compact Rcbo

£42.57 GBP
£42.57 GBP
Sale Sold out
Duties included. Shipping calculated at checkout.
Proteus XL 6A 1P+N 1 Mod Bidirectional C Curve 10kA 30mA Type A Compact RCBO
Trade accounts with 30-day credit available — your prices, fast reordering.
30-day returns · UK delivery available at checkout.
Request a bulk quote
Secure checkoutAmerican Express Apple Pay Diners ClubDiscoverGoogle Pay KlarnaMaestroMastercard PayPalShop Pay Union PayVisa
View full details

Specifications

BrandProteus XL
Manufacturer part no.XL6CRK
bidirectionalYes
complianceBS EN 61009-1, BS EN 61009-2-2
current rating6A
depth75mm
dimensions(H)87.5 mm x (W)17.5 mm x (D)75 mm
frequency50/60 Hz
guarantee1 Year
height87.5mm
incoming terminal capacity25mm²
ip ratingIP2X
materialPBT case
mountingDIN Rail
number of modules1
number of polesSingle Pole and Neutral
outgoing terminal capacity16mm²
packaging typesEach
rated breaking capacity10kA Icn at 230V AC
rcd typeA
short circuit rating10kA
standardsBS EN 61009-1, BS EN 61009-2-2
torque settingsBottom - 2Nm, Top - 1.2Nm
tripping characteristicsC Curve
tripping sensitivity30mA
unspsc v1839121601
unspsc v2439121601
voltage rating230V
weight0.20600kg
width17.5mm
