Proteus XL

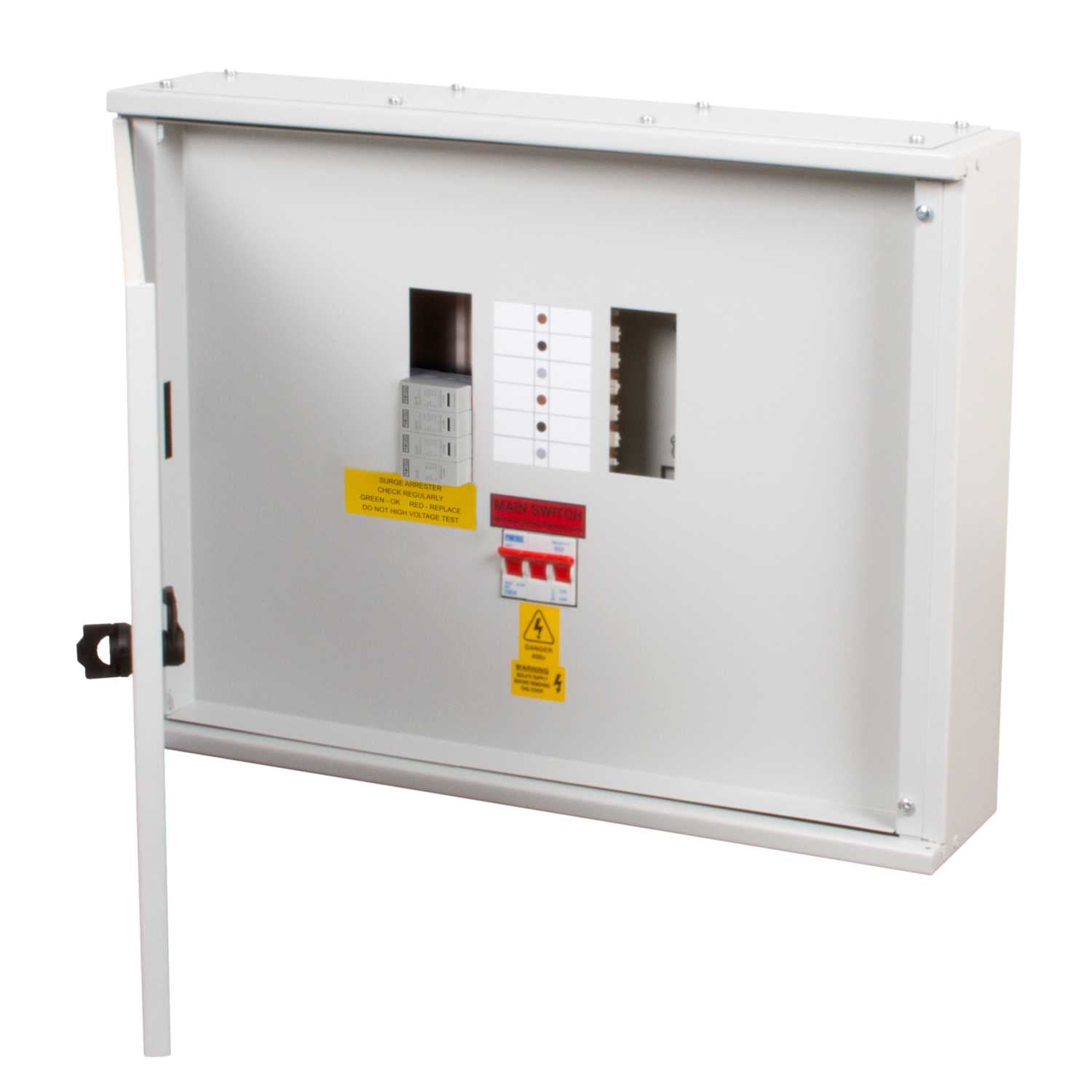

Proteus XL 3 Way TP+N Type B Distribution Board with 125A Incomer and Type 1+2 SPD

Proteus XL 3 Way TP+N Type B Distribution Board with 125A Incomer and Type 1+2 SPD

£736.80 GBP
£736.80 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Proteus XL 3 Way TP+N Type B Distribution Board with 125A Incomer and Type 1+2 SPD
Trade accounts with 30-day credit available — your prices, fast reordering.
30-day returns · UK delivery available at checkout.
Quotes & purchase orders Request a quote Upload a quote form, PO or notes for manual trade pricing.
Secure checkoutAmerican Express Apple Pay Diners ClubDiscoverGoogle Pay KlarnaMaestroMastercard PayPalShop Pay Union PayVisa
View full details

Specifications

BrandProteus XL
Manufacturer part no.XL4S125T12
busbar rating125A
cable entryTop and Bottom
current rating125A
depth132mm
dimensions(H)457 mm x (W)600 mm x (D)132 mm
door typeHinged Door
guarantee1 Year
height457mm
incoming device125A TP Isolator
incoming terminal capacity50 mm2, Neutral M10 Bolt and Earth M8 Bolt
ip ratingIP31
lockableYes
materialCold Rolled Steel
mountingSurface
number of outgoing ways3
packaging typesEach
product rangeXL Boards
standardsBS EN 61439-1-3
supplied withTriple Pole Switch Disconnector Incomer 125A and Type 1 2 Surge Protection Device
torque settingsIsolator 2-2.5 Nm, M8 and M10 Bolt 20Nm max.
unspsc v1839121110
unspsc v2439121110
voltage rating400V
weight12.00000kg
width600mm
