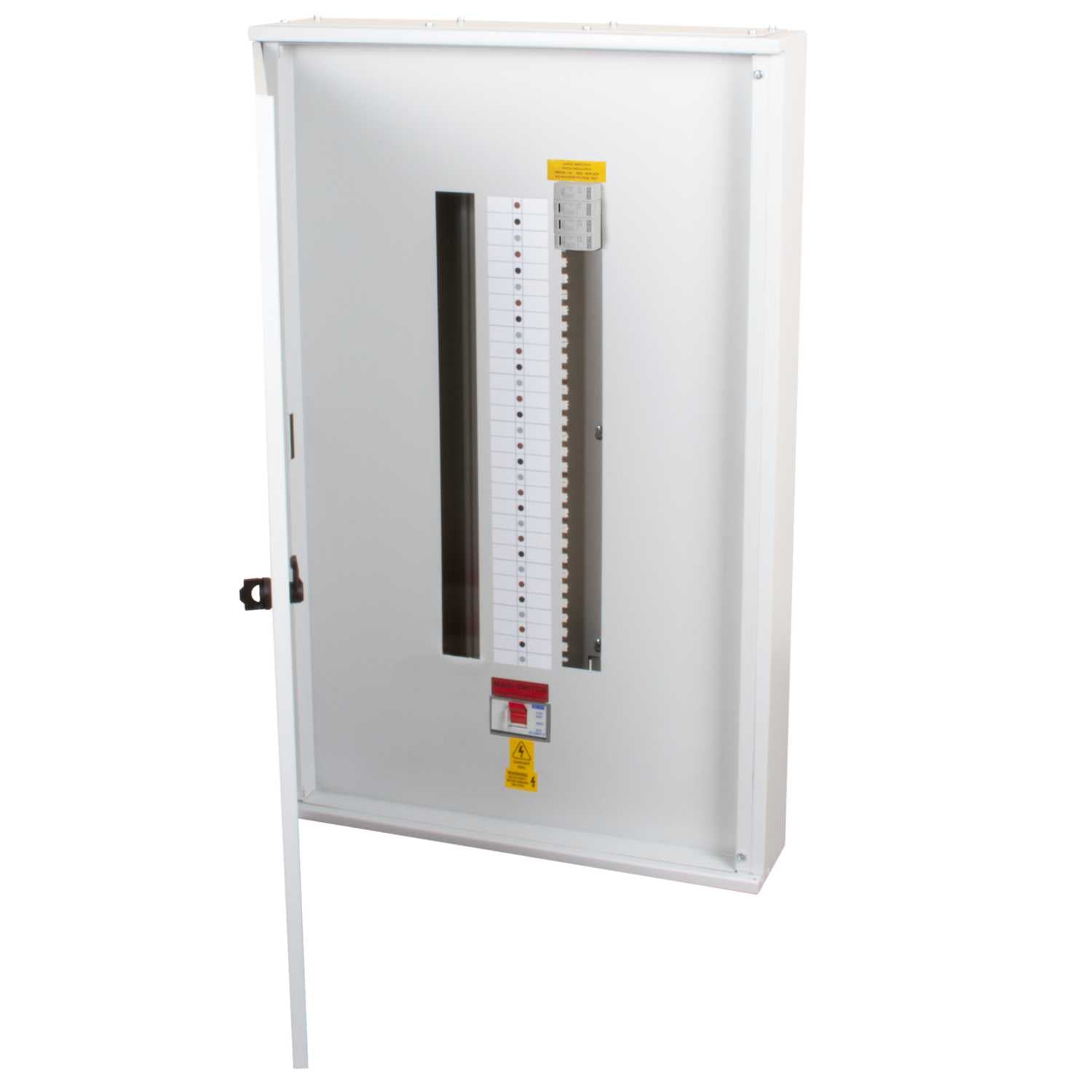

Proteus XL 19 Way TP+N Type B Distribution Board with 200A Incomer and Type 2 SPD

Proteus XL 19 Way TP+N Type B Distribution Board with 200A Incomer and Type 2 SPD

£1,038.01 GBP
£1,038.01 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Proteus XL 19 Way TP+N Type B Distribution Board with 200A Incomer and Type 2 SPD
Trade accounts with 30-day credit available — your prices, fast reordering.
30-day returns · UK delivery available at checkout.
Quotes & purchase orders Request a quote Upload a quote form, PO or notes for manual trade pricing.
Secure checkoutAmerican Express Apple Pay Diners ClubDiscoverGoogle Pay KlarnaMaestroMastercard PayPalShop Pay Union PayVisa
View full details

Specifications

BrandProteus XL
Manufacturer part no.XL20S2T2
busbar rating200A
cable entryTop and Bottom
current rating200A
depth132mm
dimensions(H)1217 mm x (W)600 mm x (D)132 mm
door typeHinged Door
guarantee1 Year
height1217mm
incoming device200A TP Isolator
incoming terminal capacity95 mm2 Cable, Neutral M10 Bolt and Earth M8 Bolt
ip ratingIP31
lockableYes
materialCold Rolled Steel
mountingSurface
number of outgoing ways19
packaging typesEach
product rangeXL Boards
standardsBS EN 61439-1-3
supplied with200A Triple Pole Switch Disconnector Incomer and Type 2 Surge Protection Device
torque settingsIsolator 4.5 Nm, M8 and M10 Bolt 20Nm max.
unspsc v1839121110
unspsc v2439121110
voltage rating400V
weight22.00000kg
width600mm
