Specifications

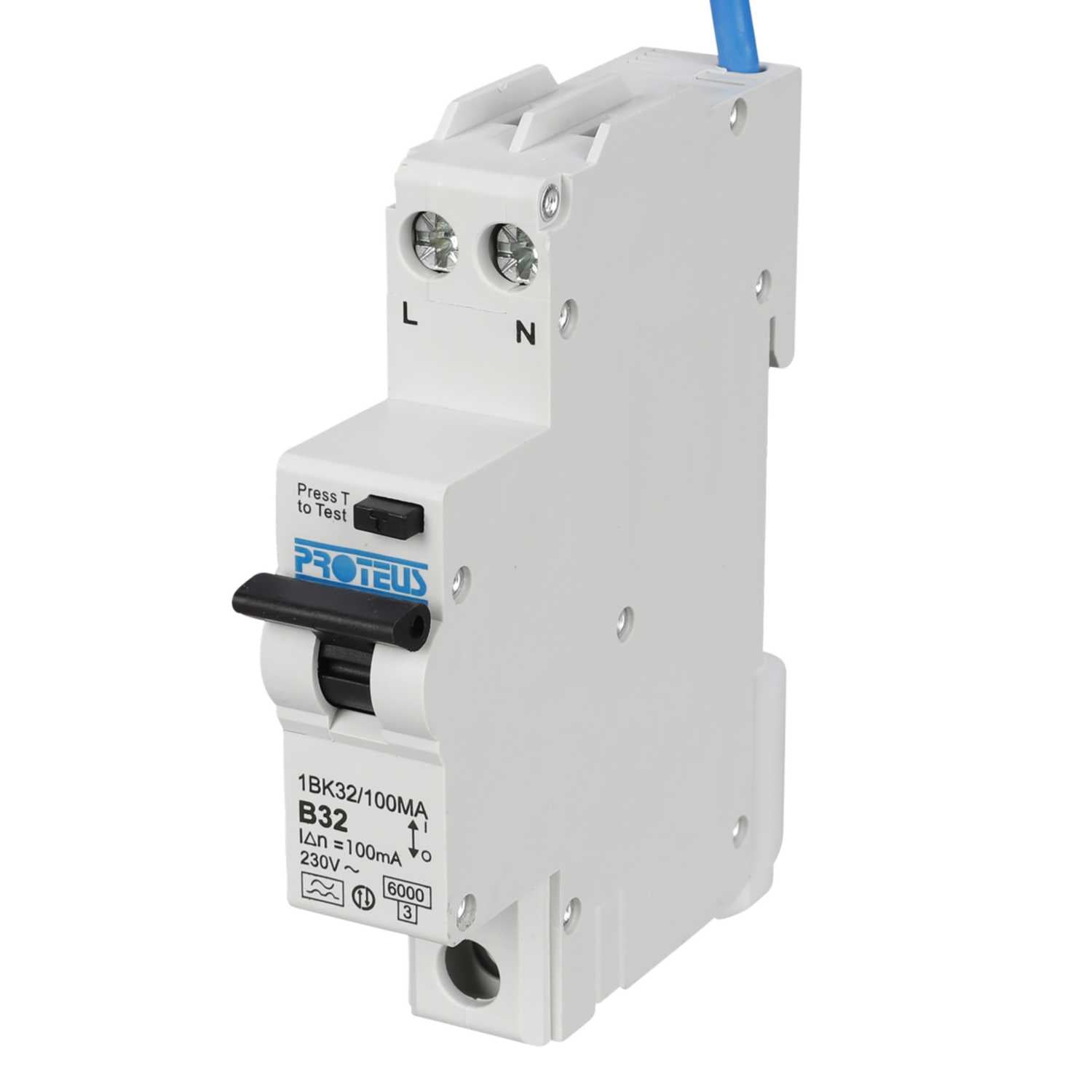

| Brand | Proteus |
| Manufacturer part no. | 1BK32/100MA |
| bidirectional | Yes |
| current rating | 32A |
| depth | 67mm |
| dimensions | (H)84 mm x (W)17.8 mm x (D)67 mm |
| guarantee | 10 Years |
| height | 84mm |
| incoming terminal capacity | 25mm² |
| material | PBT case |
| mounting | DIN Rail |
| number of modules | 1 |
| number of poles | Double Pole |
| packaging types | Each |
| product range | Proteus RCBO |
| rcd type | A |
| short circuit rating | 6kA |
| standards | BS EN 61009 |
| tripping characteristics | B Curve |
| tripping sensitivity | 100mA |
| unspsc v18 | 39121601 |
| unspsc v24 | 39121601 |
| voltage rating | 230V |
| width | 17.8mm |
