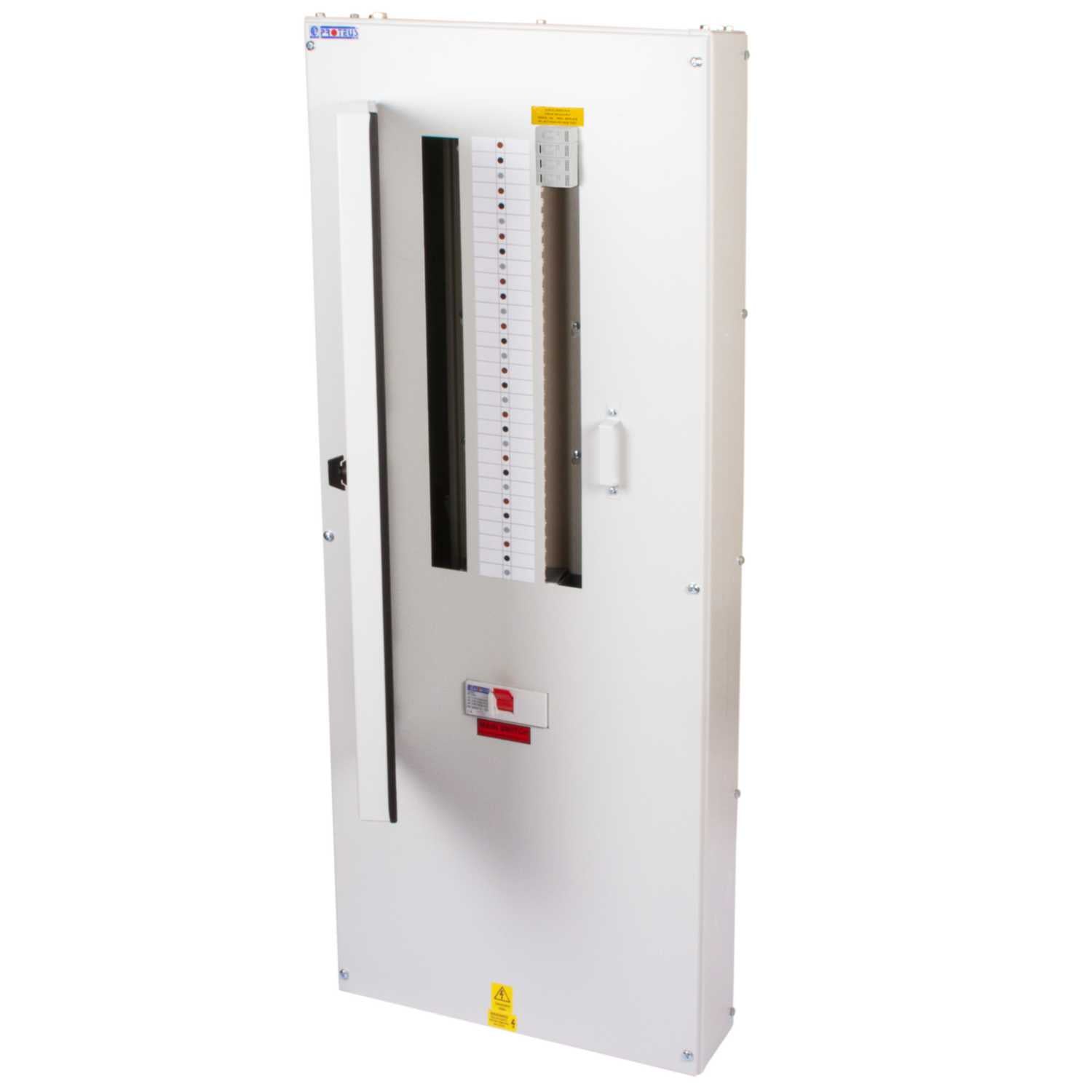

Proteus 19 Way TP+N Type B Distribution Board with 250A Incomer and Type 1+2 SPD

Proteus 19 Way TP+N Type B Distribution Board with 250A Incomer and Type 1+2 SPD

£1,353.05 GBP
£1,353.05 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Proteus 19 Way TP+N Type B Distribution Board with 250A Incomer and Type 1+2 SPD
Trade accounts with 30-day credit available — your prices, fast reordering.
30-day returns · UK delivery available at checkout.
Quotes & purchase orders Request a quote Upload a quote form, PO or notes for manual trade pricing.
Secure checkoutAmerican Express Apple Pay Diners ClubDiscoverGoogle Pay KlarnaMaestroMastercard PayPalShop Pay Union PayVisa
View full details

Specifications

BrandProteus
Manufacturer part no.BX20S250T12
busbar rating250A
cable entryTop and Bottom
current rating250A
depth170mm
dimensions(H)1300 mm x (W)500 mm x (D)170 mm
door typeHinged Door
guarantee1 Year
height1300mm
incoming device250A TP Isolator
incoming terminal capacity95mm²
ip ratingIP31
lockableYes
materialFull Cold Rolled Steel Enclosure
mountingSurface
number of outgoing ways19
packaging typesEach
product rangeBX Boards
standardsBS EN 61439-1&3
supplied withTriple Pole Switch Disconnector Incomer 250A and Type 1 2 Surge Protection Device
torque settingsM8 and M10 Bolt 20Nm max.
unspsc v1839121110
unspsc v2439121110
voltage rating400V
weight34.00000kg
width500mm
