Proteus

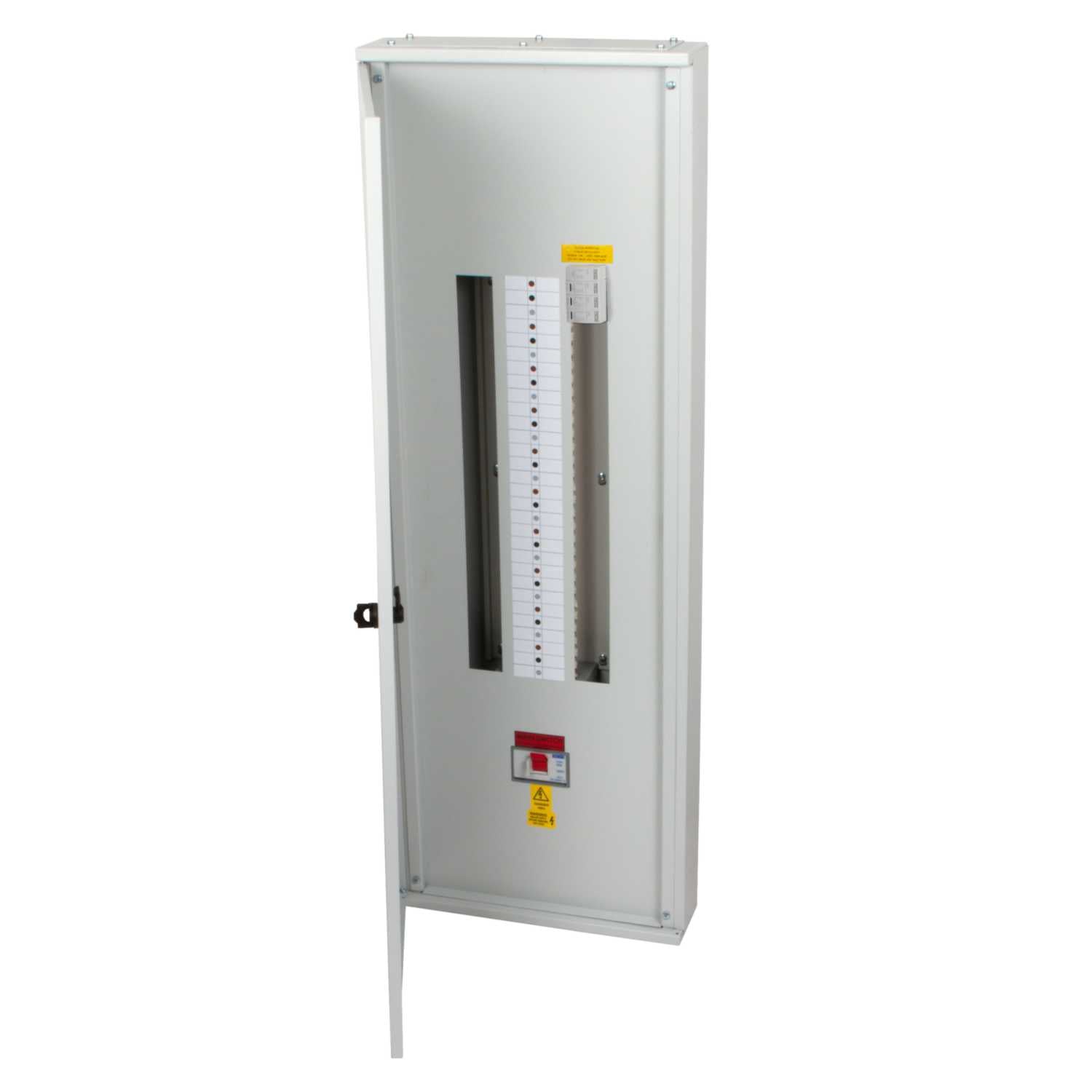

Proteus 19 Way TP+N Type B Distribution Board with 200A Incomer and Type 1+2 SPD

Proteus 19 Way TP+N Type B Distribution Board with 200A Incomer and Type 1+2 SPD

£1,353.05 GBP
£1,353.05 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Proteus 19 Way TP+N Type B Distribution Board with 200A Incomer and Type 1+2 SPD
Trade accounts with 30-day credit available — your prices, fast reordering.
30-day returns · UK delivery available at checkout.
Quotes & purchase orders Request a quote Upload a quote form, PO or notes for manual trade pricing.
Secure checkoutAmerican Express Apple Pay Diners ClubDiscoverGoogle Pay KlarnaMaestroMastercard PayPalShop Pay Union PayVisa
View full details

Specifications

BrandProteus
Manufacturer part no.BX20S2T12
busbar rating200A
cable entryTop and Bottom
current rating200A
depth110mm
dimensions(H)1180 mm x (W)410 mm x (D)110 mm
door typeHinged Door
guarantee1 Year
height1180mm
incoming device200A TP Isolator
incoming terminal capacity95mm²
ip ratingIP31
lockableYes
materialFull Cold Rolled Steel Enclosure
mountingSurface
number of outgoing ways19
packaging typesEach
product rangeBX Boards
standardsBS EN 61439-1&3
supplied withTriple Pole Switch Disconnector Incomer 200A and Type 1 2 Surge Protection Device
torque settingsIsolator 4.5 Nm, M8 and M10 Bolt 20Nm max.
unspsc v1839121110
unspsc v2439121110
voltage rating400V
weight19.00000kg
width410mm
