Specifications

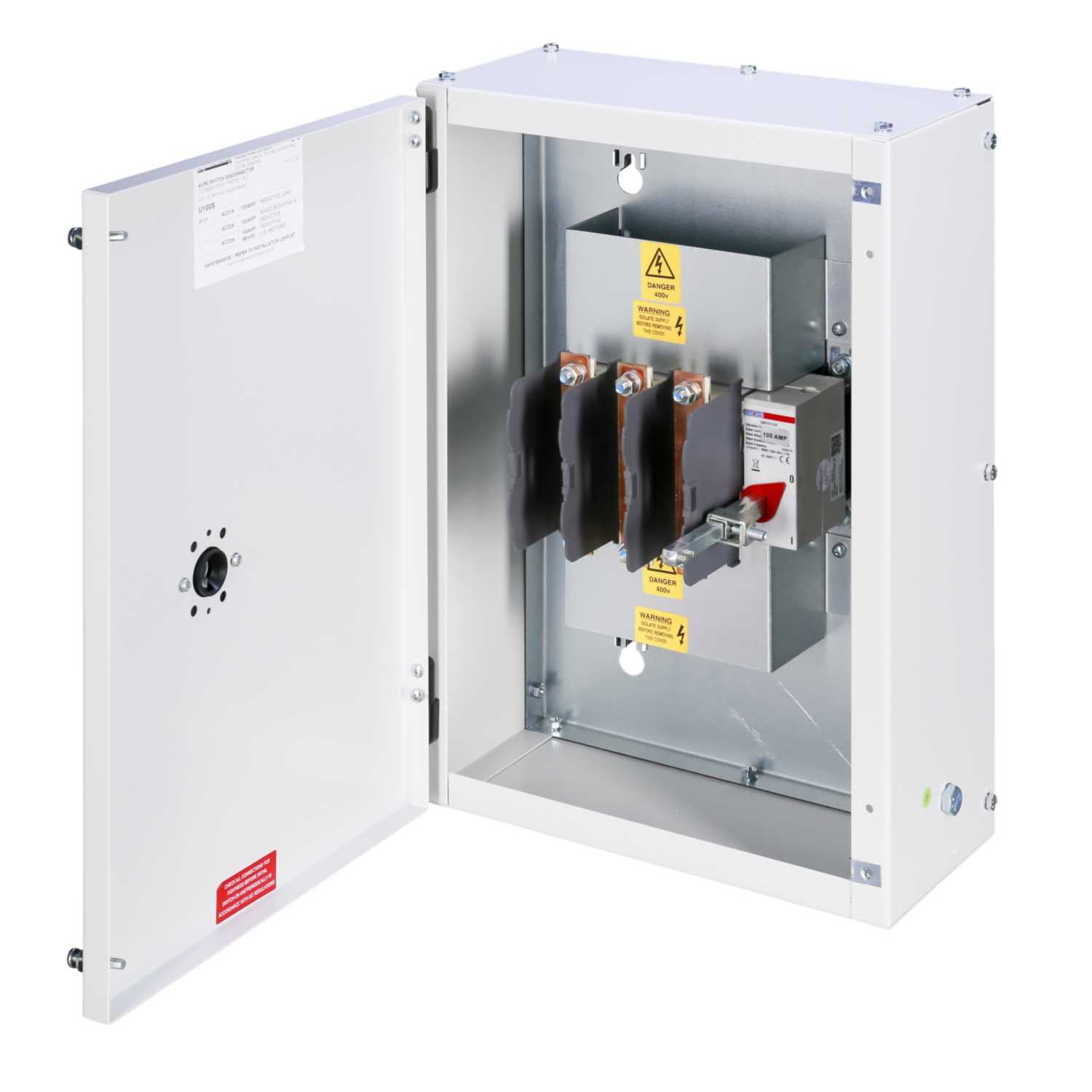

| Brand | Proteus |
| Manufacturer part no. | U100S |
| cable entry | Top and Bottom Removable Gland Plates |
| current rating | 100A |
| depth | 185mm |
| dimensions | (H)500 mm x (W)350 mm x (D)185 mm |
| door type | Hinged Door |
| guarantee | 1 Year |
| handle type | Pistol Grip |
| height | 500mm |
| incoming terminal capacity | M8 Bolt 70mm² |
| ip rating | IP3X |
| lockable | Yes |
| material | 1.5 mm Cold Rolled Steel |
| mounting | Surface |
| number of poles | Triple Pole and Neutral |
| packaging types | Each |
| product range | U Switchgear Range |
| standards | BS EN 60947-3 |
| terminal capacity | 70mm² |
| unspsc v18 | 39121116 |
| unspsc v24 | 39121116 |
| voltage rating | 400V |
| weight | 11.00000kg |
| width | 350mm |
