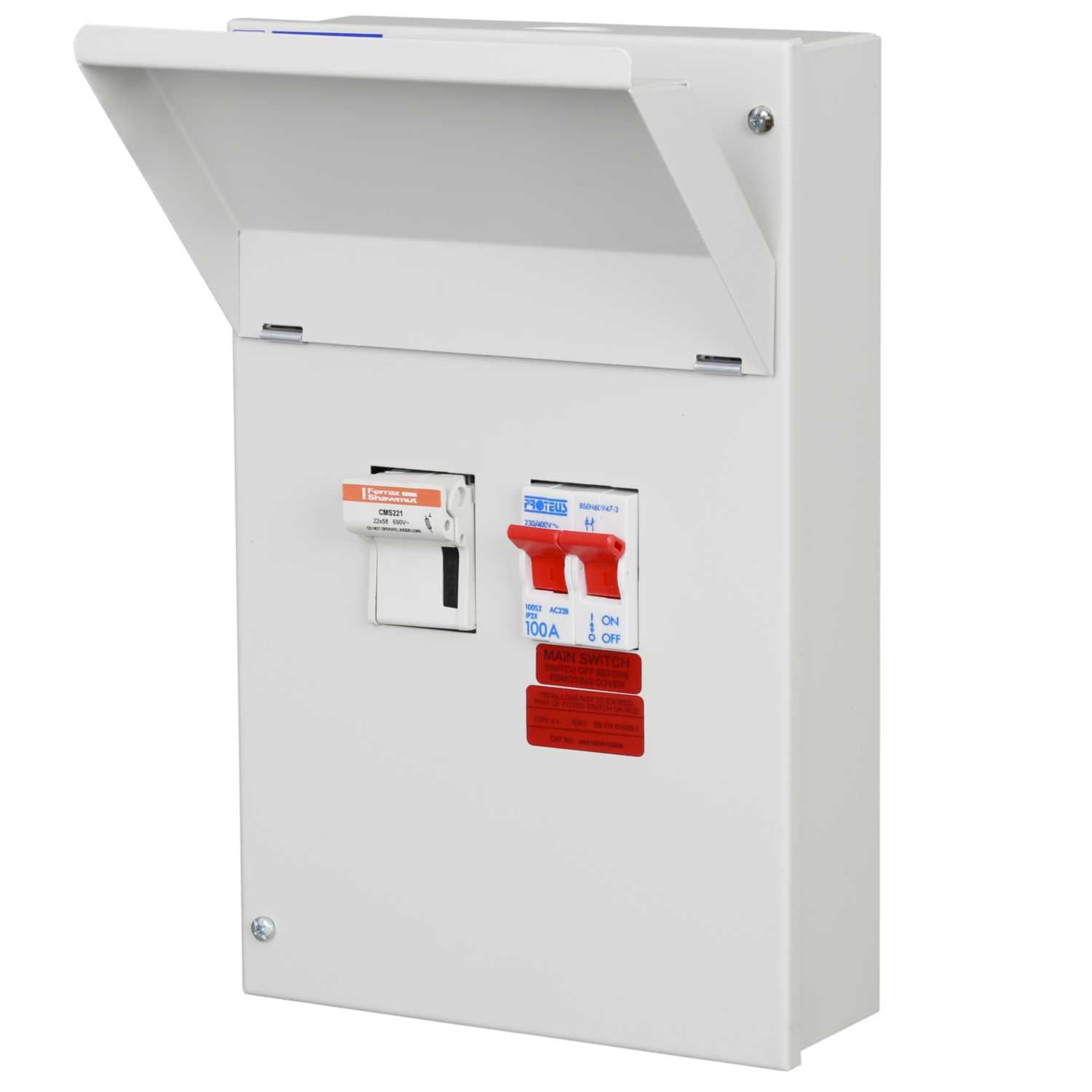

Proteus 100A SP+N Metal Switch Fuse

Name: Proteus 100A SP+N Metal Switch Fuse
Brand: Proteus
SKU: 45984
Price: 73.82 GBP
Availability: InStock

£73.82 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Trade accounts with 30-day credit available — your prices, fast reordering.

30-day returns · UK delivery available at checkout.

Secure checkout

Specifications

Brand	Proteus
Manufacturer part no.	SF100
cable entry	Knockouts 2 x 32mm
current rating	100A
depth	93mm
dimensions	(H)307 mm x (W)192 mm x (D)93 mm
door type	Top Hinged
guarantee	1 Year
height	307mm
incoming terminal capacity	50mm²
ip rating	IP30
material	Polyester Powder Coated Steel Construction
mounting	Surface
number of poles	Single Pole and Neutral
outgoing terminal capacity	50mm²
packaging types	Each
product range	Single Phase Switch Fuses
short circuit rating	16kA
standards	BS EN 61947 parts 1&3, BS 88 pt 2
supplied with	HRC Fuse
type	Single Phase Switch Fuses
unspsc v18	39121116
unspsc v24	39121116
utilisation category	AC22B
voltage rating	230V 400V
weight	2.41600kg
width	192mm
