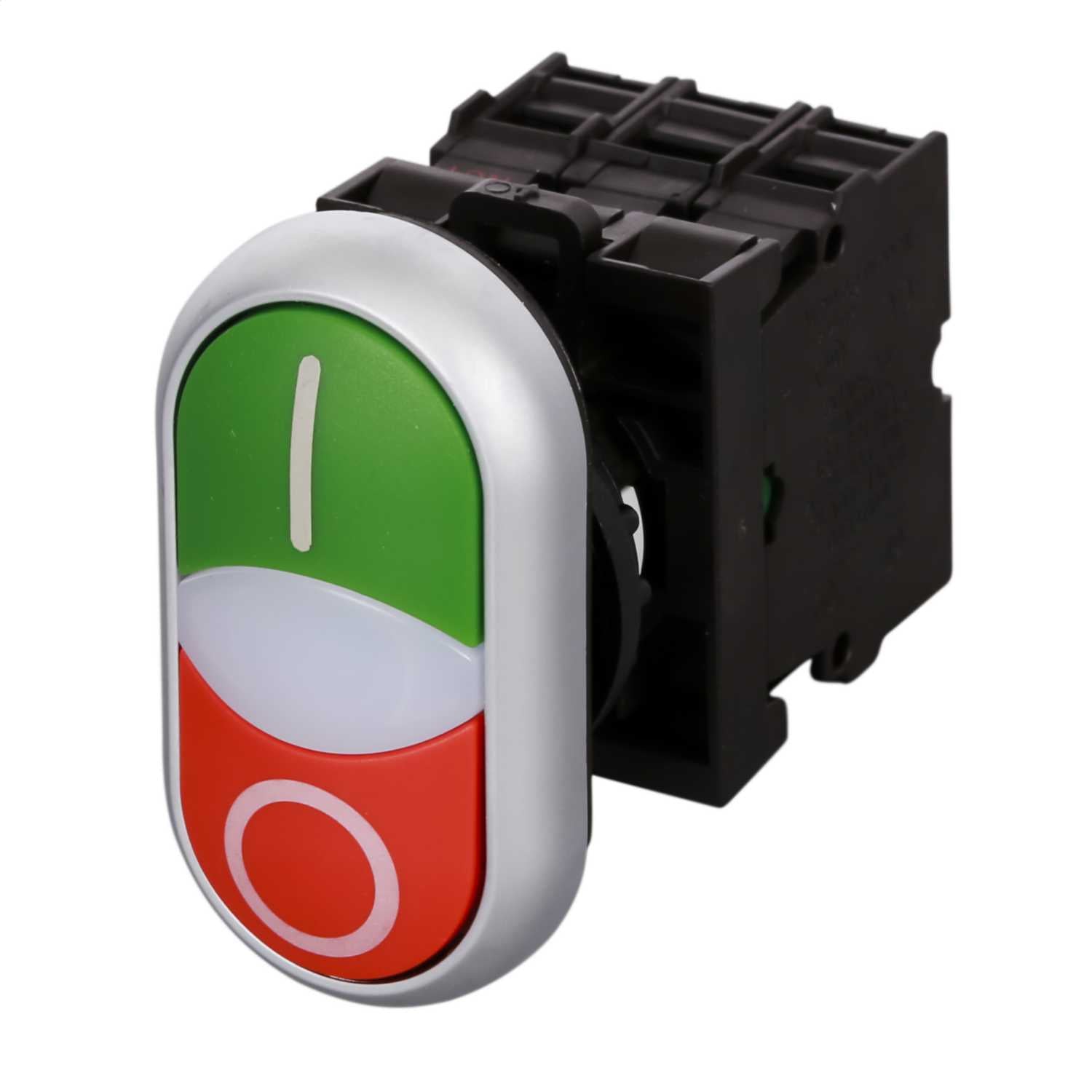

Moeller M22-DDL-GR-X1/X0/K11/230-W Flush Momentary Start/Stop 1 NC + 1 NO Pushbutton

Moeller M22-DDL-GR-X1/X0/K11/230-W Flush Momentary Start/Stop 1 NC + 1 NO Pushbutton

£42.64 GBP
£42.64 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Moeller M22-DDL-GR-X1/X0/K11/230-W Flush Momentary Start/Stop 1 NC + 1 NO Pushbutton
Trade accounts with 30-day credit available — your prices, fast reordering.
30-day returns · UK delivery available at checkout.
Quotes & purchase orders Request a quote Upload a quote form, PO or notes for manual trade pricing.
Secure checkoutAmerican Express Apple Pay Diners ClubDiscoverGoogle Pay KlarnaMaestroMastercard PayPalShop Pay Union PayVisa
View full details

Specifications

BrandMoeller
Manufacturer part no.216509
colourGreen/Red
contact configuration1 NO 1 NC
cut out22mm
dimensions(H)54.7 mm x (W)29.7 mm
finishChrome Front Ring
guarantee1 Year
height54.7mm
ip ratingIP66
legendI and O
lens colourWhite
maximum operating temperature70°C
mechanical shock resistance30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
minimum operating temperature-25°C
operation typeMomentary
packaging typesEach
product rangeRMQ Titan
standardsIEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
storage temperature range-40 - 80°C
unspsc v1839122216
unspsc v2439122216
weight0.06000kg
width29.7mm
