Specifications
| Brand | Megger |
| Manufacturer part no. | MFT1721 |
| 3 phase rotation | Yes |
| ac voltage measurement | 600V AC |
| batteries included | Yes |
| battery level indicator | Yes |
| battery size | AA |
| battery type | Alkaline |
| continuity check | Yes |
| continuity range | 0.01 Ω - 99.9 kΩ |
| depth | 235mm |
| dimensions | (H)150 mm x (W)85 mm x (D)235 mm |
| display type | LCD |
| guarantee | 3 Years |
| height | 150mm |
| insulation resistance measuring range | 0.01 MΩ - 999 MΩ |
| insulation test voltage | 100V / 250V / 500V / 1000V |
| ip rating | IP54 |
| kit contents | 1 x 3 Wire Lead Set with Probes and Croc Clips 1 x Switched Probe 1 x Mains Plug Test Lead 1 x Neck Strap 1 x Calibration Certificate 1 x Heavy-Duty Carry Case |
| loop impedance range | 0.01 Ω - 1000 Ω |
| number of batteries | 6 |
| packaging types | Each |
| product range | MFT1700 Series |
| rcd settings | ½ / x1 / x5 @ 0° and 180° / Type AC / A / B / S / Auto and Ramp Tests |
| rcd test range | 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA |
| rechargeable | No |
| safety range | CAT III 600V, CAT IV 300V |
| standards | IEC 61010, IEC 61557, EMC IEC 61326 |
| supplied with | 1 x 3 Wire Lead Set with Probes and Croc Clips 1 x Switched Probe 1 x Mains Plug Test Lead 1 x Neck Strap 1 x Calibration Certificate 1 x Heavy-Duty Carry Case |

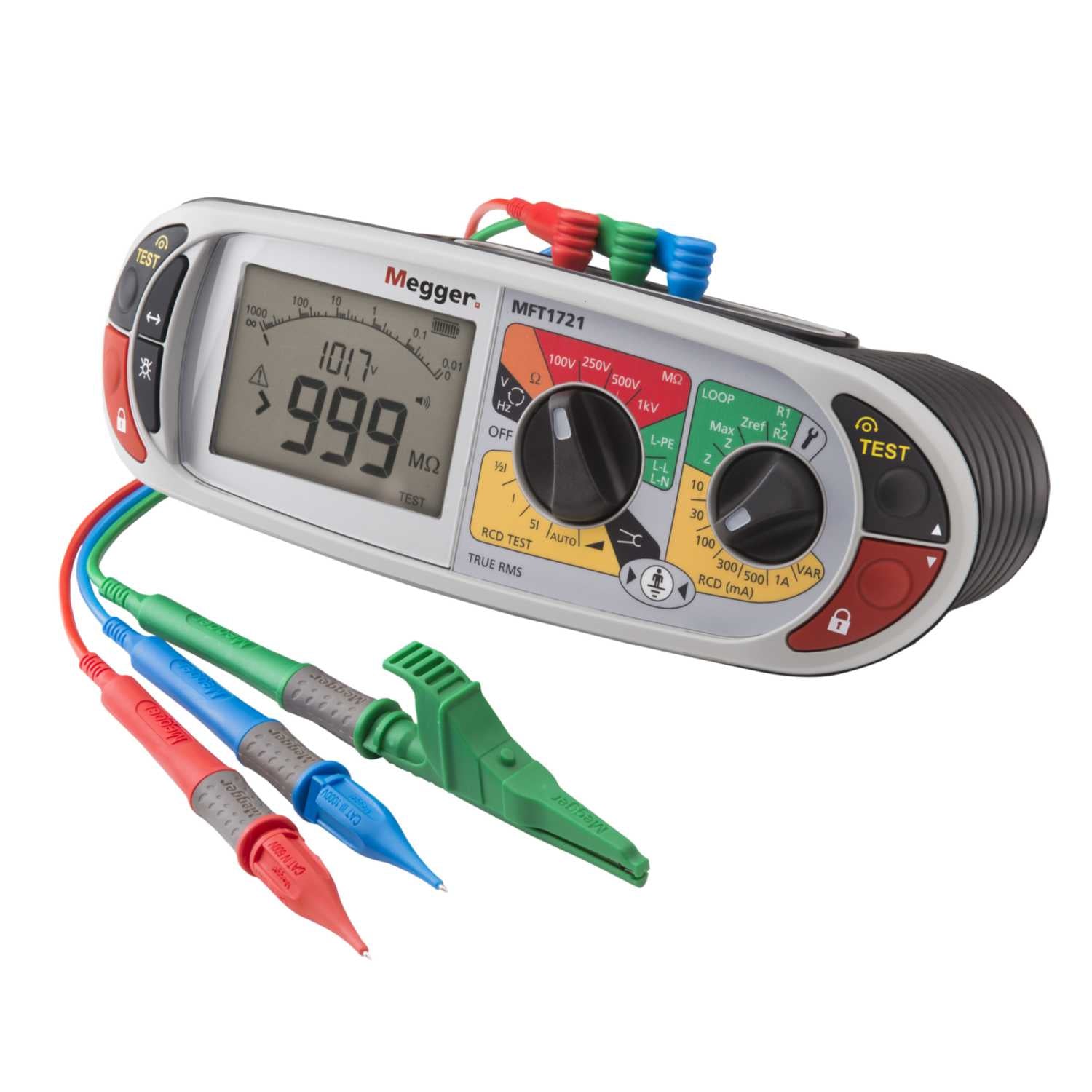

| type | Multifunction Installation Tester |
| unspsc v18 | 41113681 |
| unspsc v24 | 41113681 |
| weight | 0.99800kg |
| width | 85mm |
