Specifications
| Brand | MCG |
| Manufacturer part no. | MCGSFML |
| cable entry | Knockouts [M20 and M25] |
| compliance | UKCA, CE |
| current rating | 63A 80A 100A |
| depth | 82mm |
| dimensions | (H)225 mm x (W)115 mm x (D)82 mm |
| door type | Top Hinged |
| guarantee | 1 Year |
| height | 225mm |
| incoming terminal capacity | 35mm² |
| ip rating | IP20 |
| material | Steel |
| mounting | Surface |
| number of poles | Double Pole |
| outgoing terminal capacity | 35mm² |
| packaging types | Box |
| standards | BS EN 61439-3 / IEC 60269 |

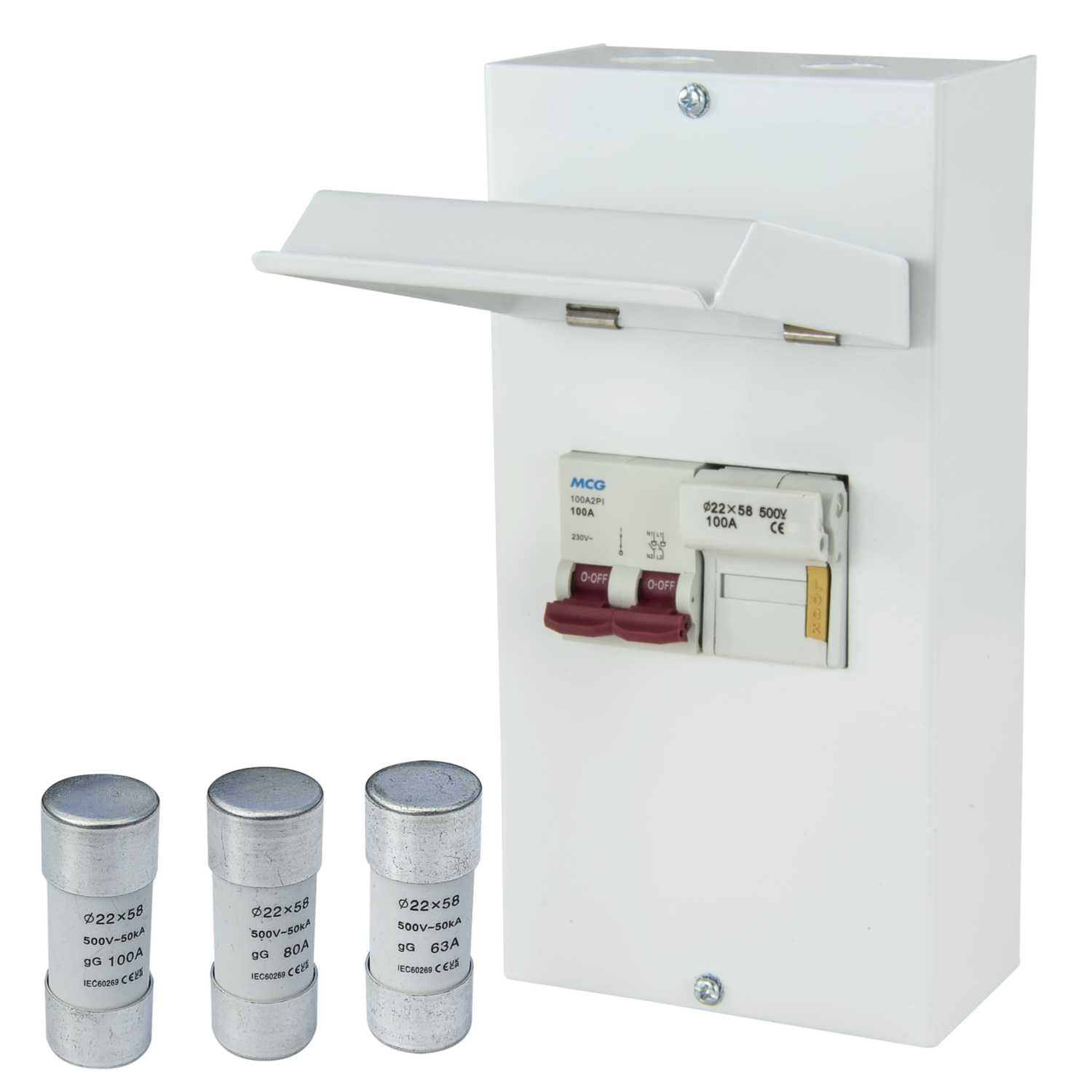

| supplied with | 2 Pole 100A Isolator, Fuse Holder and 63A, 80A and 100A type gG general purpose Fuses |
| unspsc v18 | 39121116 |
| unspsc v24 | 39121116 |
| voltage rating | 230V |
| weight | 0.38000kg |
| width | 115mm |
