MCG 50A 1P+N 1 Module C Curve 10kA 30mA Type A Rcbo

Name: MCG 50A 1P+N 1 Module C Curve 10kA 30mA Type A Rcbo
Brand: MCG
SKU: 4833608
Price: 26.08 GBP
Availability: InStock

£26.08 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

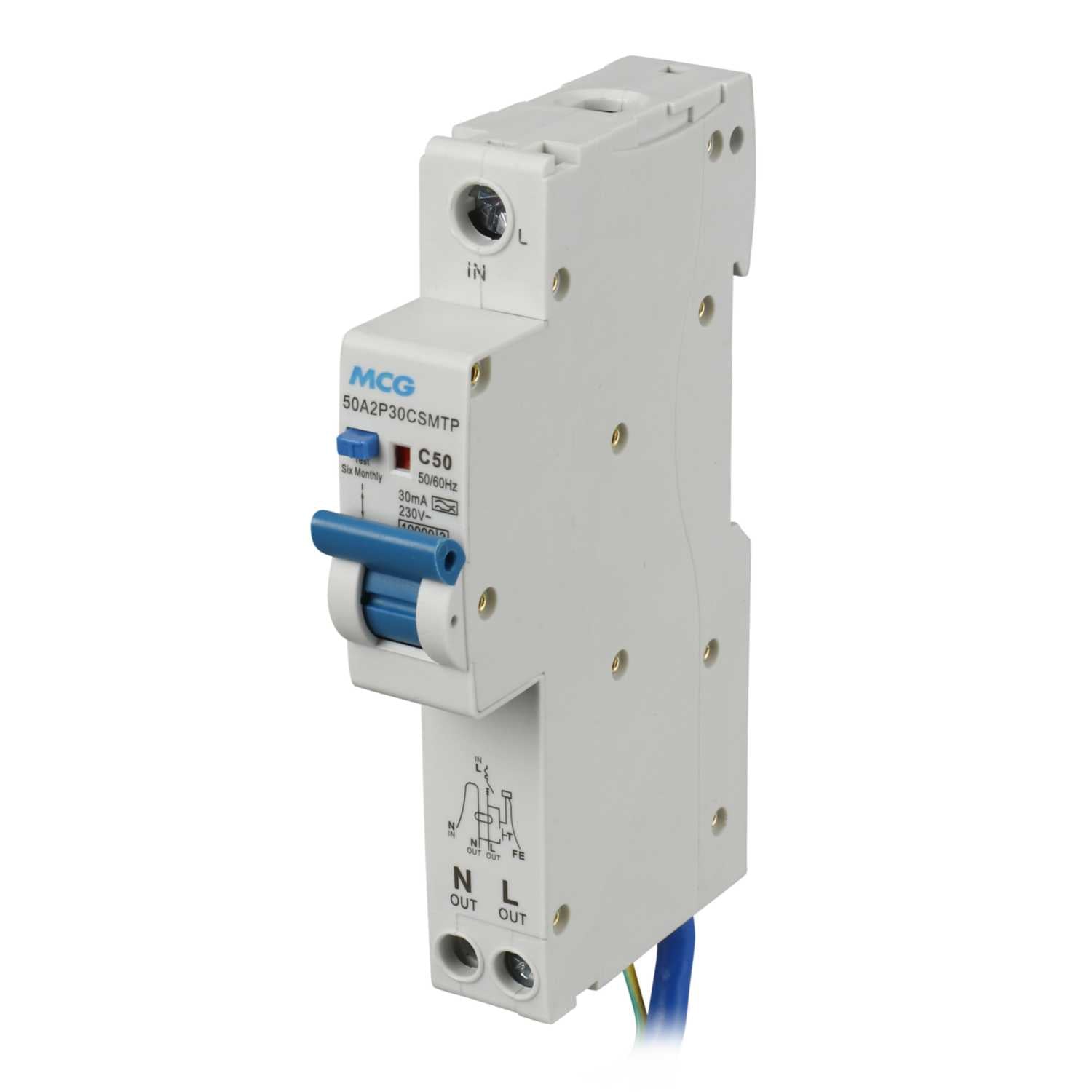

MCG 50A 1P+N 1 Module C Curve 10kA 30mA Type A RCBO

Trade accounts with 30-day credit available — your prices, fast reordering.

30-day returns · UK delivery available at checkout.

Secure checkout

Specifications

Brand	MCG
Manufacturer part no.	50A2P30CSMTP
bidirectional	No
colour	Grey/Blue
compliance	UKCA, CE
current rating	50A
depth	67mm
dimensions	(H)112 mm x (W)18 mm x (D)67 mm
guarantee	1 Year
height	112mm
incoming terminal capacity	16mm²
material	Plastic / Metal
mounting	DIN Rail
number of modules	1
number of poles	Single Pole and Neutral
operating temperature range	-25 - 40°C
outgoing terminal capacity	16mm²
packaging types	Box
rcd type	A
short circuit rating	10kA
standards	IEC 61009-1
torque settings	1.2Nm [L/N out] / 2Nm [L in]
tripping characteristics	C Curve
tripping sensitivity	30mA
unspsc v18	39121601
unspsc v24	39121601
voltage rating	230V
weight	0.22500kg
width	18mm
