MCG 32A 1P+N 1 Module Bidirectional B Curve 6kA 30mA Type A Rcbo

MCG 32A 1P+N 1 Module Bidirectional B Curve 6kA 30mA Type A Rcbo

£15.79 GBP
£15.79 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

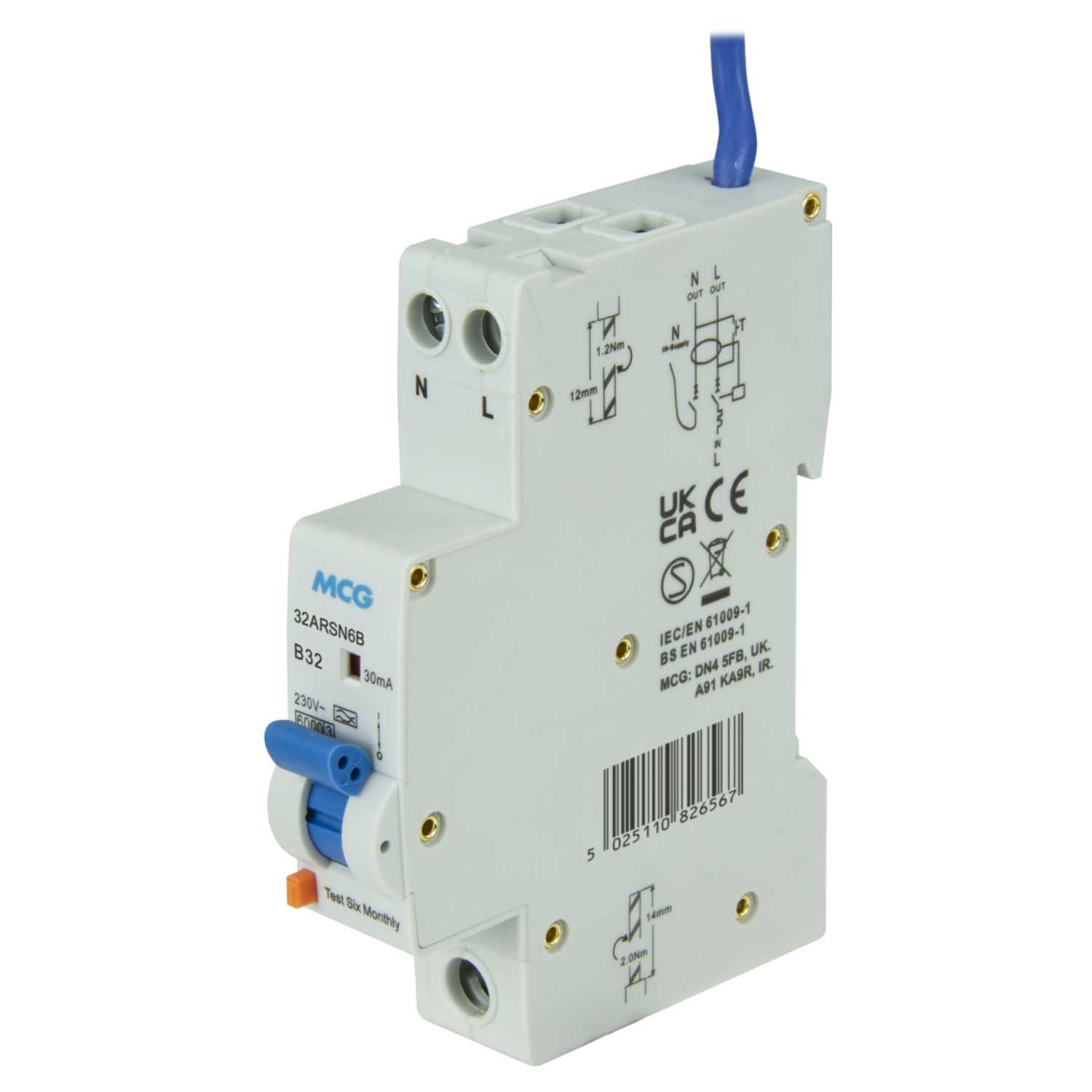

MCG 32A 1P+N 1 Module Bidirectional B Curve 6kA 30mA Type A RCBO
Trade accounts with 30-day credit available — your prices, fast reordering.
30-day returns · UK delivery available at checkout.
Quotes & purchase orders Request a quote Upload a quote form, PO or notes for manual trade pricing.
Secure checkoutAmerican Express Apple Pay Diners ClubDiscoverGoogle Pay KlarnaMaestroMastercard PayPalShop Pay Union PayVisa
View full details

Specifications

BrandMCG
Manufacturer part no.32ARSN6B
bidirectionalYes
complianceUKCA, CE
current rating32A
depth66mm
dimensions(H)87 mm x (W)18 mm x (D)66 mm
guarantee1 Year
height87mm
incoming terminal capacity16mm² [L/N out]
mountingDIN Rail
number of modules1
number of polesSingle Pole & Neutral [Switched]
operating temperature range-25 - 40°C
outgoing terminal capacity25mm² [L in]
packaging typesBox
rcd typeA
short circuit rating6kA
standardsIEC 61009-1
torque settings1.2Nm [L/N out] / 2Nm [L in]
tripping characteristicsB Curve
tripping sensitivity30mA
unspsc v1839121601
unspsc v2439121601
voltage rating230V
weight0.01500kg
width18mm
