M2

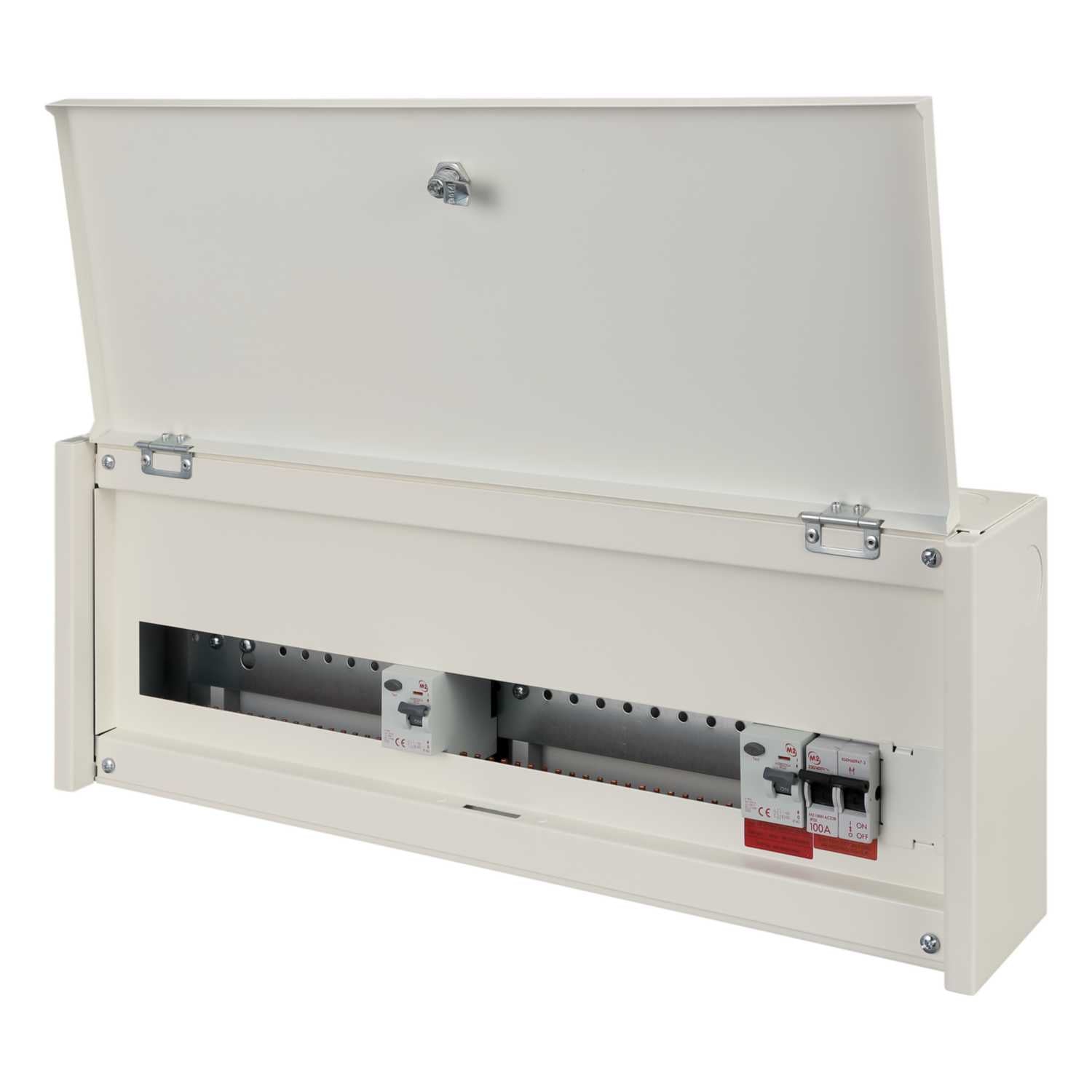

M2 11 + 11 Dual 80A Type A RCD Metal Clad Consumer Unit

Name: M2 11 + 11 Dual 80A Type A RCD Metal Clad Consumer Unit
Brand: M2
SKU: 4916139
Price: 158.35 GBP
Availability: InStock

£158.35 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Trade accounts with 30-day credit available — your prices, fast reordering.

30-day returns · UK delivery available at checkout.

Secure checkout

Specifications

Brand	M2
Manufacturer part no.	AM2X1111TRMUA
board configuration	11 11
cable entry	Selection of Knockouts / Cutouts
compliance	BSEN61439-3
current rating	100A
depth	110mm
dimensions	(H)256 mm x (W)597 mm x (D)110 mm
door type	Top Hinged
height	256mm
incoming device	100A DP Isolator
incoming terminal capacity	35mm²
ip rating	IP4XC
material	Steel
mounting	Surface
number of modules	30
number of outgoing ways	22
packaging types	Each
product range	M2
rcd rating	80A
rcd type	A
standards	BSEN61439-3
surge protection fitted	No
surge protection ready	Yes
tripping sensitivity	30mA
unspsc v18	39121110
unspsc v24	39121110
voltage rating	230V
weight	6.58700kg
width	597mm
