Specifications
| Brand | Fluke |
| Manufacturer part no. | FLUKE 1664FC |
| ac voltage measurement | 500V AC |
| batteries included | Yes |
| battery level indicator | Yes |
| battery size | AA |
| battery type | Alkaline |
| continuity check | Yes |
| continuity range | 0.01 Ω - 2000 Ω |
| dc voltage measurement | 500V DC |
| dimensions | (L)100 mm x (H)125 mm x (W)250 mm |
| display type | LCD |
| earth electrode test | Yes |
| guarantee | 3 Years |
| height | 125mm |
| insulation resistance measuring range | 0.01 MΩ - 1000 MΩ |
| insulation test voltage | 50V / 100V / 250V / 500V / 1000V |
| ip rating | IP40 |

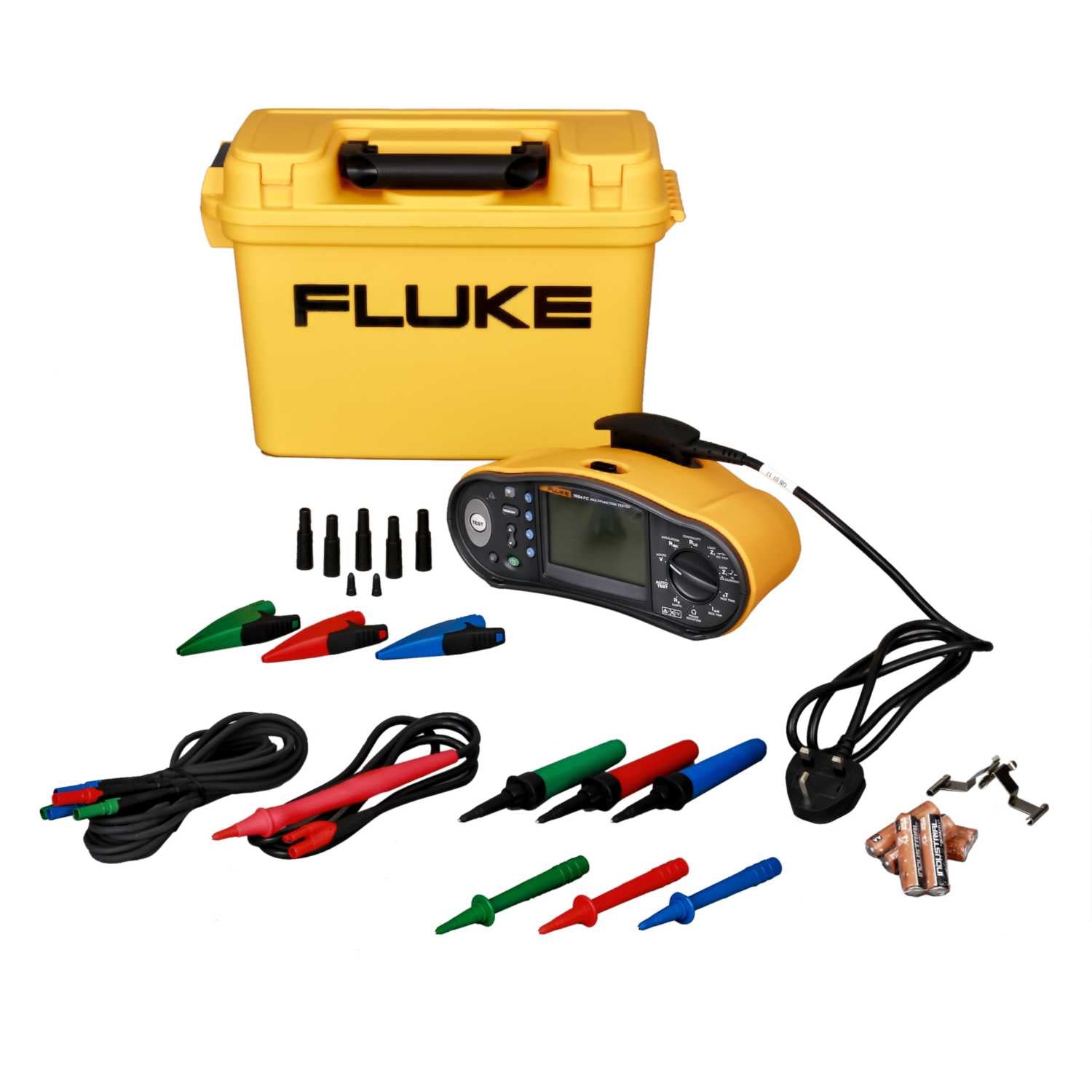

| kit contents | 1 x Zero Adaptor, 1 x Heavy Duty Mains Lead, 1 x Standard Test Lead Set, 1 x Padded Carrying and Waist Strap, 1 x TP165X Remote Control Probe and Lead, 6 x AA Batteries and 1 x C1600 Hard Carrying Case |
| length | 100mm |
| loop impedance range | 0.001 Ω - 2000 Ω |
| number of batteries | 6 |
| packaging types | Each |
| product range | 1660 Series |
| rcd settings | ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests |
| rcd test range | 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA |
| safety range | CAT III 500V, CAT IV 300V |
| standards | IEC/EN61010-1 |
| supplied with | 6 x AA Batteries, C1600 Hard Carrying Case, Zero Adapter, Heavy Duty Mains Cord, Standard Test Lead Set, Padded Carrying and Waist Strap, Quick Reference Guide, TP165X Remote Control Probe and Lead and User's Manual on CD-ROM |
| type | Multifunction Installation Tester |
| unspsc v18 | 41113681 |
| unspsc v24 | 41113681 |
| video url | https://youtu.be/8SJrNm4a_K8 |
| weight | 1.30000kg |
| width | 250mm |
