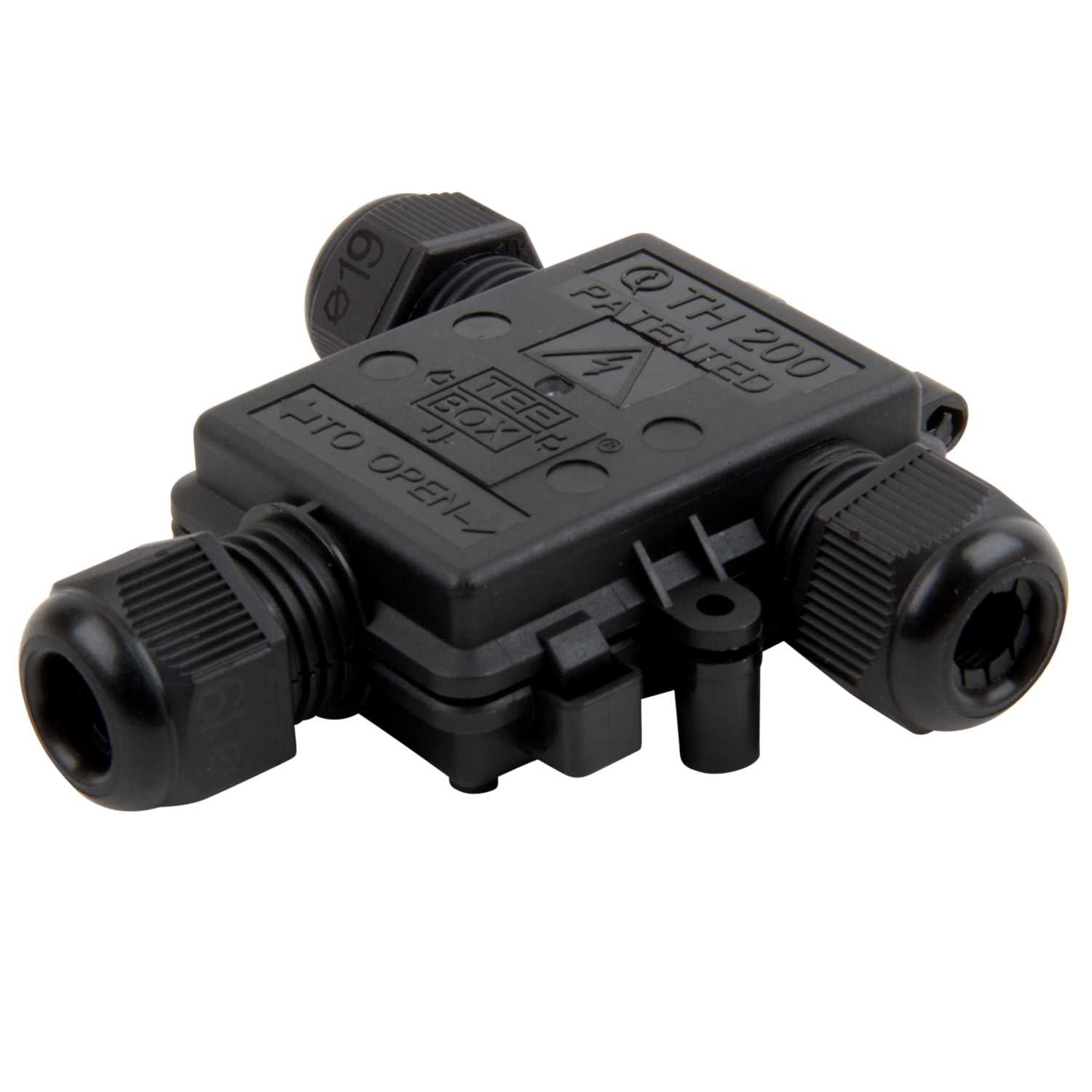

F4P 24A Tee 3 Port Junction Box IP67

Name: F4P 24A Tee 3 Port Junction Box IP67
Brand: F4P
SKU: 233743
Price: 26.76 GBP
Availability: InStock

£26.76 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Trade accounts with 30-day credit available — your prices, fast reordering.

30-day returns · UK delivery available at checkout.

Secure checkout

Specifications

Brand	F4P
Manufacturer part no.	THK200/3B
cable size range	4 - 9.5mm²
colour	Black
compliance	UKCA, CE, RoHS, ENEC, Nemko
current rating	24A
depth	22mm
diameter	19mm
dimensions	(Dia)19 mm x (H)80 mm x (W)75 mm x (D)22 mm
guarantee	1 Year
height	80mm
ip rating	IP67
material	PA66-SEBS-TPE
maximum cable diameter	9.5mm
maximum operating temperature	125°C
minimum diameter	4mm
minimum operating temperature	-40°C
number of poles	3 Pole
number of terminals	3
packaging types	Each
product range	TeeBox
stripping length	See Datasheet
suitable for	Round cable only / Indoors or Outdoors
supplied with	x9 seals, locking caps, fixings and x1 blanking plug [for 2 way applications]
terminal capacity earth	4mm²
terminal capacity live neutral	4mm²
terminal type	Screw
unspsc v18	39121332
unspsc v24	39121332
voltage rating	450V
weight	0.05000kg
width	75mm
