Chalmit

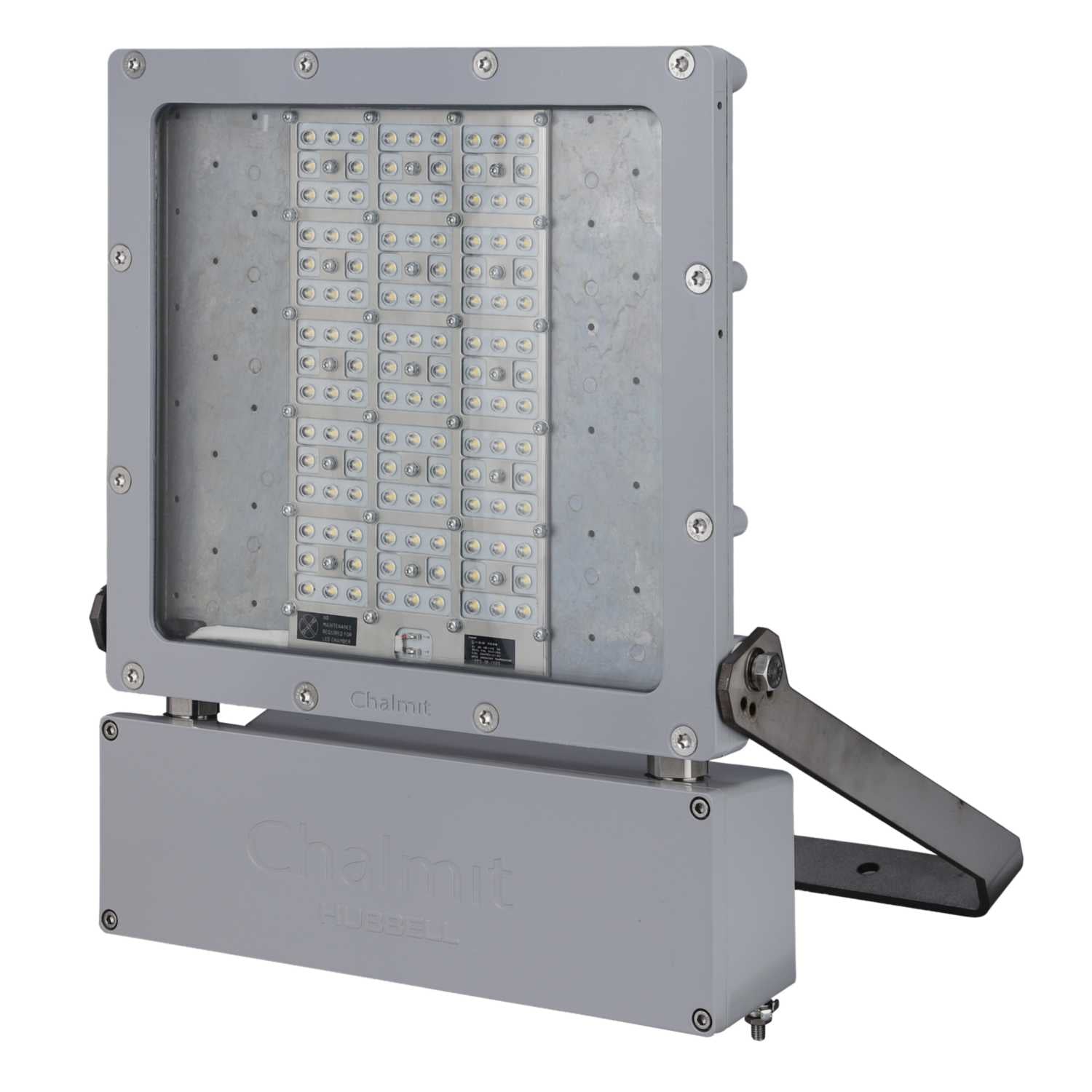

Chalmit 188W Ex LED Zone 1 / 21 Evolution X Floodlight

Name: Chalmit 188W Ex LED Zone 1 / 21 Evolution X Floodlight
Brand: Chalmit
SKU: 5322551
Price: 1864.36 GBP
Availability: InStock

£1,864.36 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Trade accounts with 30-day credit available — your prices, fast reordering.

30-day returns · UK delivery available at checkout.

Secure checkout

Specifications

Brand	Chalmit
Manufacturer part no.	EVXB/20L/LE
atex classificatio	Ex db eb [Flameproof, Increased Safety], Ex tb [Dust Protected Enclosure], Group II Category 2 GD
cable entry	2 x M20 Entries
certification code	CML20ATEX1114X, IECEx CML 20.0073X, CML 21UKEX1510X
colour	Grey
colour temperature	5000 K
depth	279mm
dimensions	(H)599 mm x (W)422 mm x (D)279 mm
frequency	50/60 Hz
guarantee	1 Year
height	599mm
ip rating	IP66
lamp life	120000h
lumens output	20980lm
material	LM6 Marine Grade Aluminium Body with UV Resistant Glass Diffuser
mounting	Floodlight / Column / Post / Pendant / Highbay
operating temperature range	-50-60°C
packaging types	Each
power rating	188W
standards	Zone 1 and 21 Areas to EN 60079-10-1 and EN 60079-10-2 with Installation to EN 60079-14
supplied with	Stirrup Mounting Bracket
unspsc v18	39111611
unspsc v24	39111611
voltage rating	110V 230V
weight	15.5kg
width	422mm
zone rating	Zone 1 Zone 21
